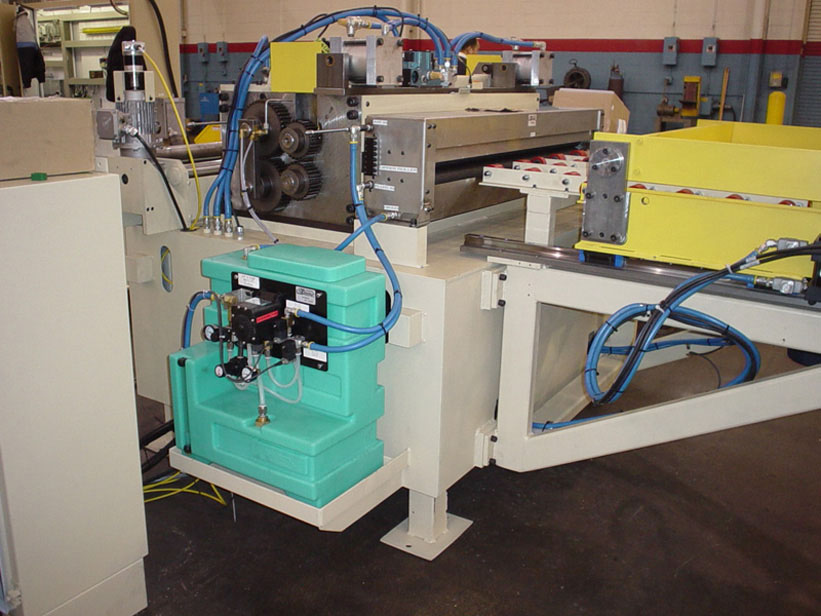

Dispensing heads are held against the rolls and lubricant is dispensed upon command. The LSP electronic controller is programmed to dispense the correct amount of lubricant for each cycle of the press. A floating chassis allows the rolls to float with the coil stock insuring that the rolls are always in contact with the material. Lubricant to the FloaterCoater is controlled with either manual on off valves or with the LSP Controller itself for precise lubricant usage.

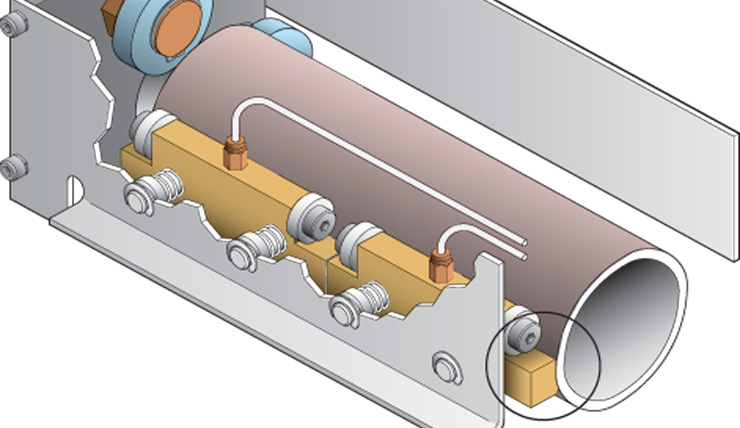

Heads are individually selected by the On/Off Valve and are spring loaded against the Lubricating Rollers. Faces conform to the Lubricating Roller’s curvature to ensure an even spread of lubricant onto the roll.

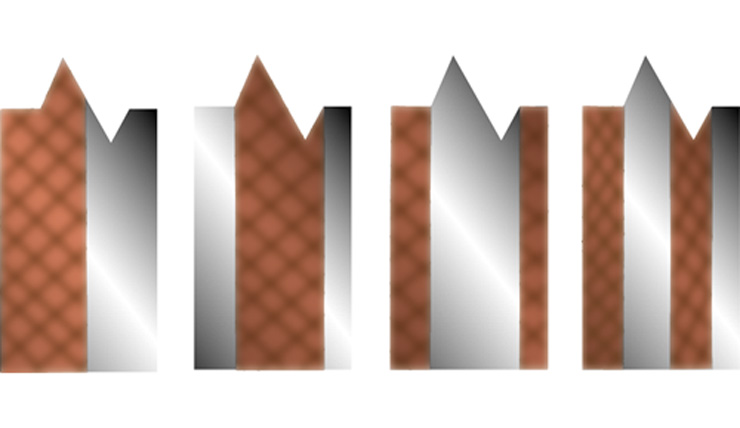

Each Dispensing Head is controlled with an ON/OFF Valve. Closing a valve prevents lubricant from coating a specific area of the coil stock.

PresSpray Module is mounted on a Reservoir. Preassembled so that just the Nozzles and the Actuator have to be installed.

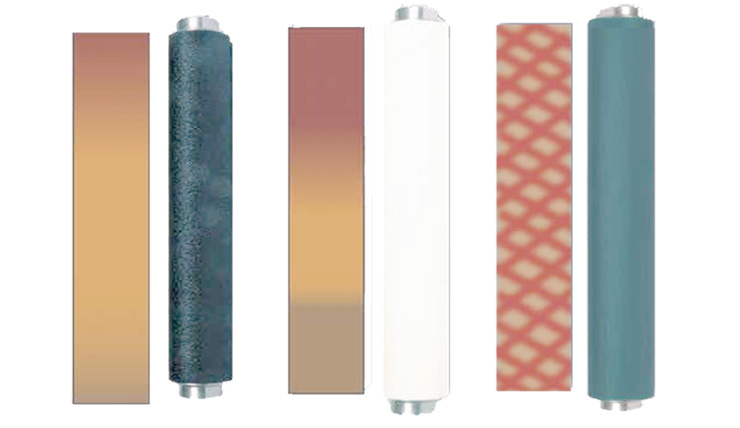

Polyurethane with a Smooth Finish (left) applies a very light coating. Felt Rolls (center) give more versatility in lubricant thickness. Polyurethane with a Textured Finish (right) provide a heavier coating.
